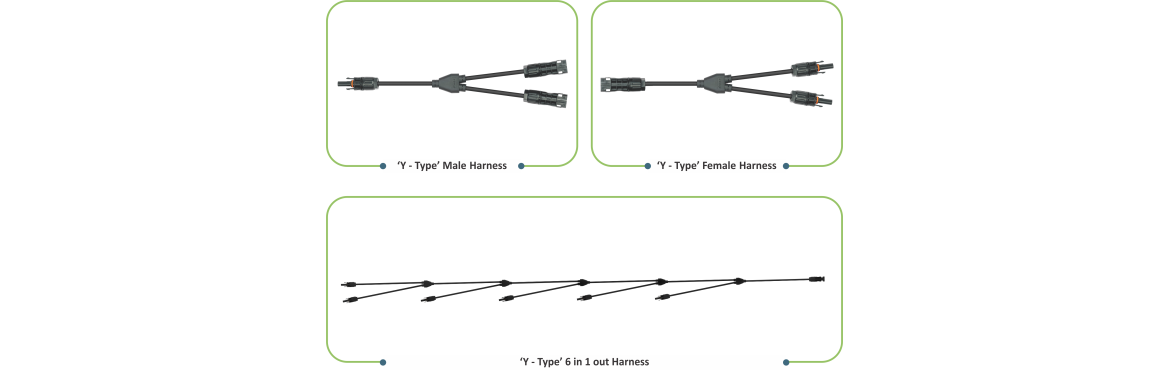

elmex PV Solar Over Moulded Wire Harnesses solutions are suitable for photovoltaic applications, having multiple input & output with plug & socket design suitable for 2.5, 4.0, 6.0 mm² size cables. They are constructed using fame retardant engineering thermoplastic elastomer suitable for exposure to UV rays and for application in PV power generation system. The over-molded wire harnesses are customized solutions and can be configured using straight connectors or inline fuse connectors with different cable sizes of 2.5, 4.0 & 6.0 mm².
|
Description
|
Specifications
|
|
Rated Voltage
|
1000V DC / 1500V DC
|
|
Rated Current
|
30 A
|
|
RMS Test Voltage
|
6 kV (1000 V) / 8kV (1500 V)
|
|
Contact Material
|
Copper with Tin Plating
|
|
Degree of Protection
|
IP 68
|
|
Pollution Degree
|
III
|
|
Rated Conductor Size
|
2.5 mm²/ 4.0 mm²/ 6.0 mm²
|
|
Locking System
|
Snap In Locking Type
|
Note : (1) 'elmex' Wire Harness solutions are customized, based on cable size , length & type of connectors.
(2) Connectors when mated , need a tool to open in accordance with NEC 2014.
